Seiko 6139A, Seiko 6139
Our selection of spare parts for this calibre: Seiko 6139A, 17 jewels
The basic off this caliber is Seiko 6106A and 6105B look to the parts.
For the chronograph is the basic SEiko 6138.
817.610, 357.612 and are used by more caliber, so it is standing separate
Parts Special for the Seiko 6139A are:
Seiko 6106A, 25 jewels
Seiko 6106A, 25 jewels
Our selection of spare parts for this calibre: Seiko 6106A, 25 jewels
817.610 Is used by more caliber, so it is standing separate.
Seiko 6105A, 17 jewels
Seiko 6105A, 17 jewels
Our selection of spare parts for this calibre: Seiko 6105A, 17 jewels
The basic off this caliber is Seiko 6106A,
817.610, is used by more calibers, so it is standing separate
500.620, Is used by more calibers, so it is standing separate
803.615 is used by more calibers, so it is standing separate
For this calibre we acknowledge the following parts as a base:
205... Barrel (drum and cover)
213... Barrel arbor
224... Center wheel with cannon pinion
232... Third wheel
241... Fourth wheel, second wheel
225... Cannon pinion
245 Cannon pinion for sweep second wheel
271... Hour wheel
261... Minute wheel
275 Sweep second pinion
301 Regulator for flat hairspring
307 Regulator for breguet hairspring
351... Stem
404 Stem male/female
282... Clutch wheel
283... Winding pinion
285... Ratched wheel
284... Crown wheel
481... Crown wheel ring
423 Crown wheel core, upper
381.. Click
382... Click spring
434 Clicking spring
384... Yoke
437 Rocking bar
385... Yoke spring
383... Setting lever
386... Setting lever spring
453 Intermediate setting wheel
462 Minute work cock
704 Escape wheel for lower endpiece
251... Escape wheel
301...Juwelled pallet fork
711 Pallet with lower endstone
310... Balance complete
315... Balance staff
728 Balance staff
331...Plateau
401... Mainspring
790... Pin escape wheel
792... Balance staff
797... Pin pallet fork for roller
798... Finger
800... Pin pallet fork for finger
500... Oscillating Weight
511... First reduction Wheel
514... Second reduction Wheel
530... Friction Spring for Intermediate pinion
542... Rocking seat for idle wheel
546... First reduction wheel click guard
551... First reduction wheel click
553... Click spring for first reduction wheel
860... Intermediate pinion for Ratchet wheel
556... Date finger
801... Date Dial
802... Date driving wheel
808... Date dial guard
810... Date jumper
811... Date jumper spring
817... Intermediate date wheel
880... Date Corrector
881...Date corrector lever
883... Date corrector spring
If the part you need it not available or listed, do not hesitate to contact us.

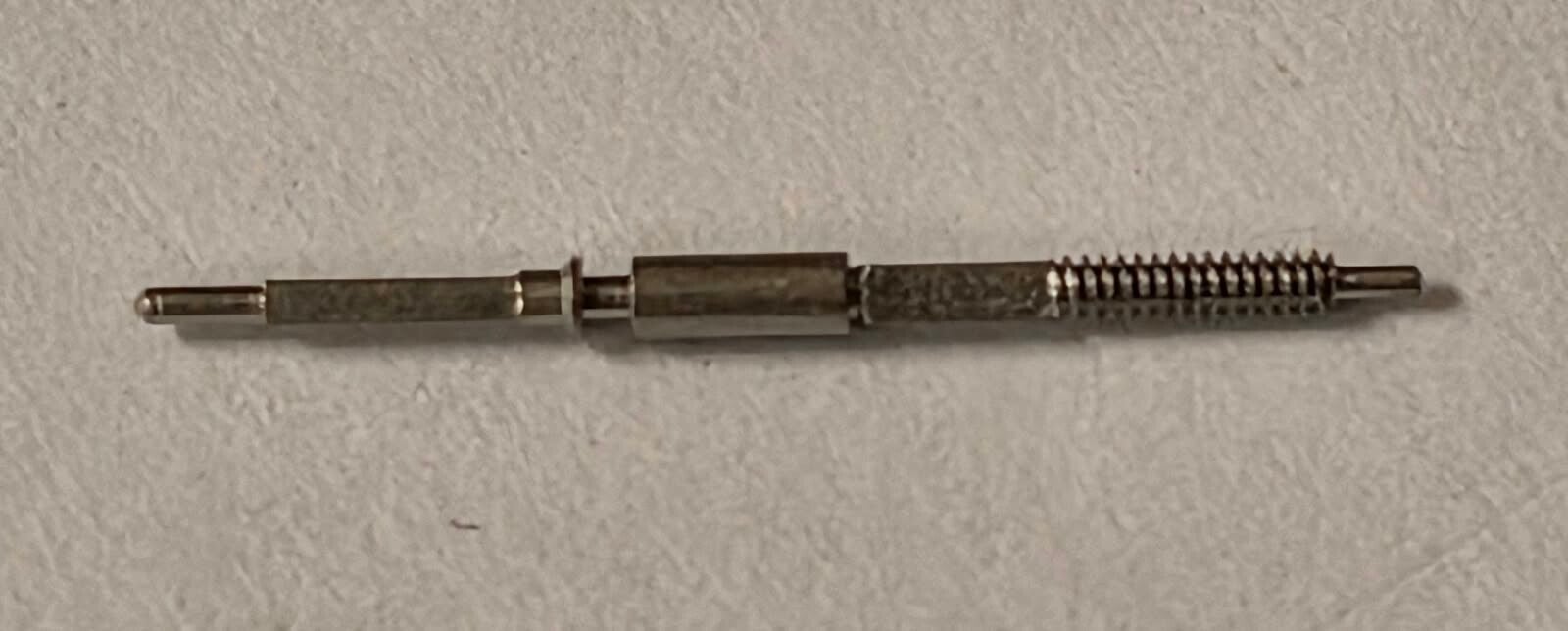

Below figure is an example for this calibre type:
